U.S. Pattern Company
TOP QUALITY TOOLING SINCE 1941
Located in Detroit, the Company quickly established itself among the area foundries as an innovative and quality driven company that produced top quality tooling for the foundry industry.
Today, U. S. Pattern is one of the oldest and most respected pattern shops in the state of Michigan offering continuous services for the past 75 years. U. S. Pattern remains committed to providing its customers with world-class quality pattern equipment that meets or exceeds the customer’s expectations.
WHAT WE OFFER
OUR PRODUCTS

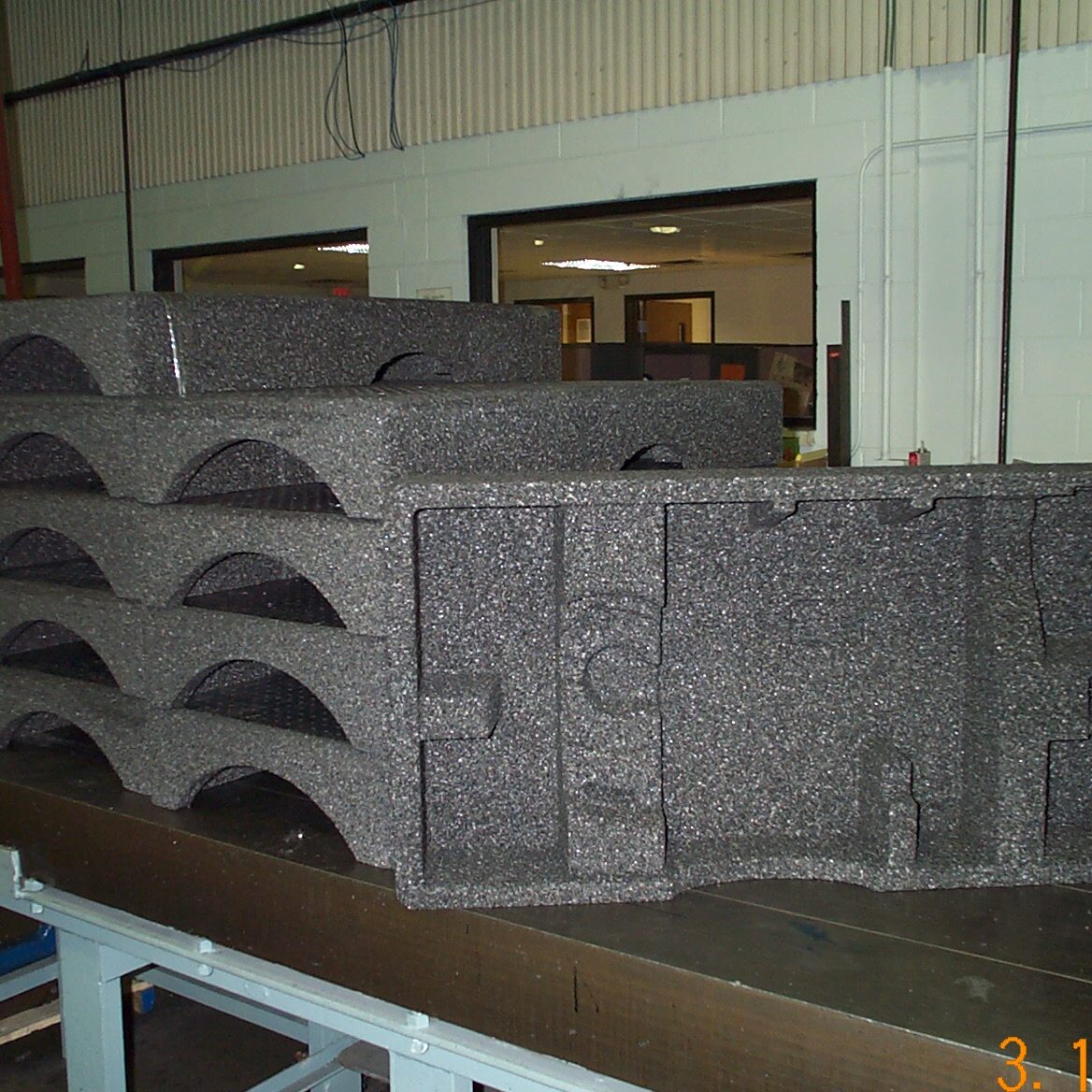

Foam Prototypes

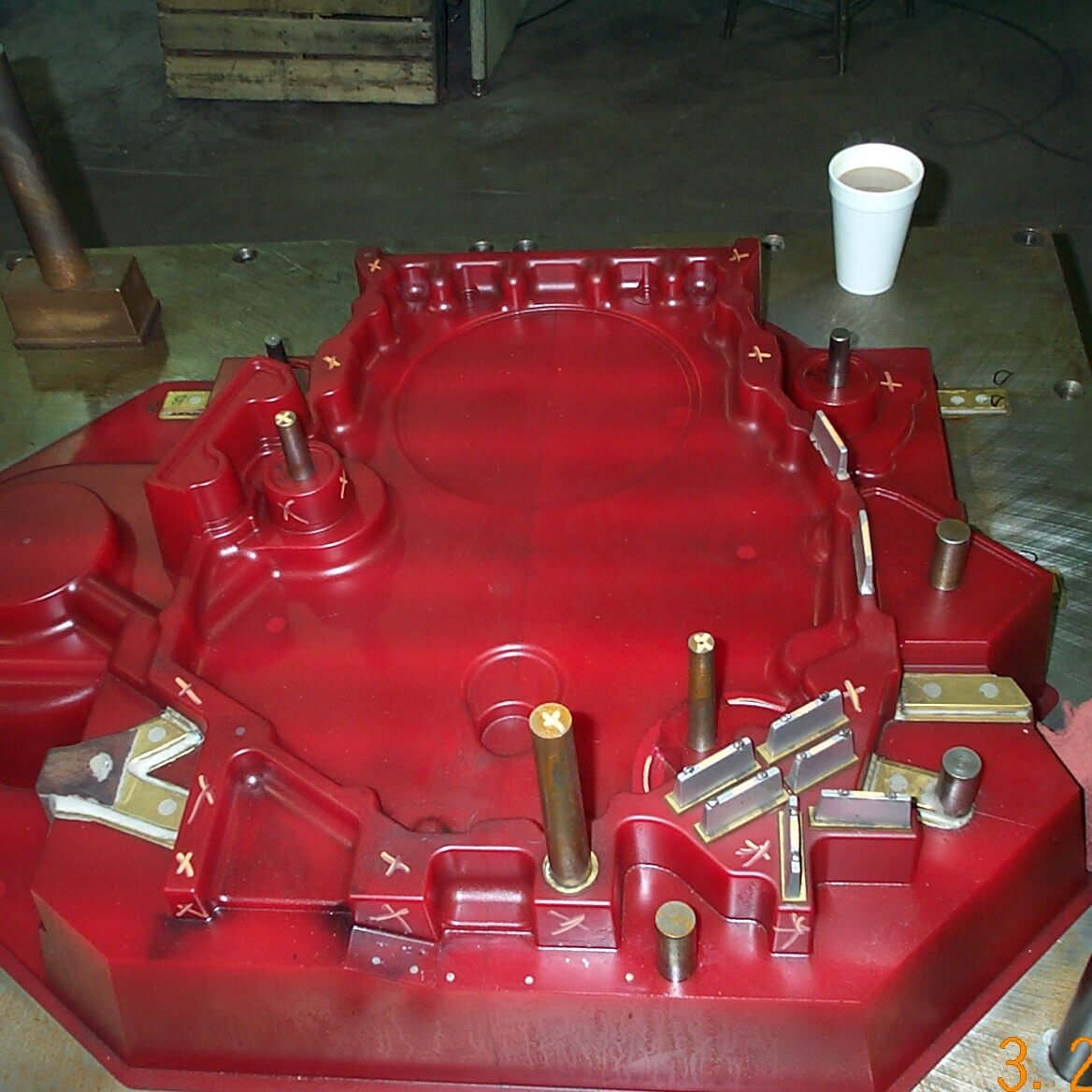

Plastic Patterns

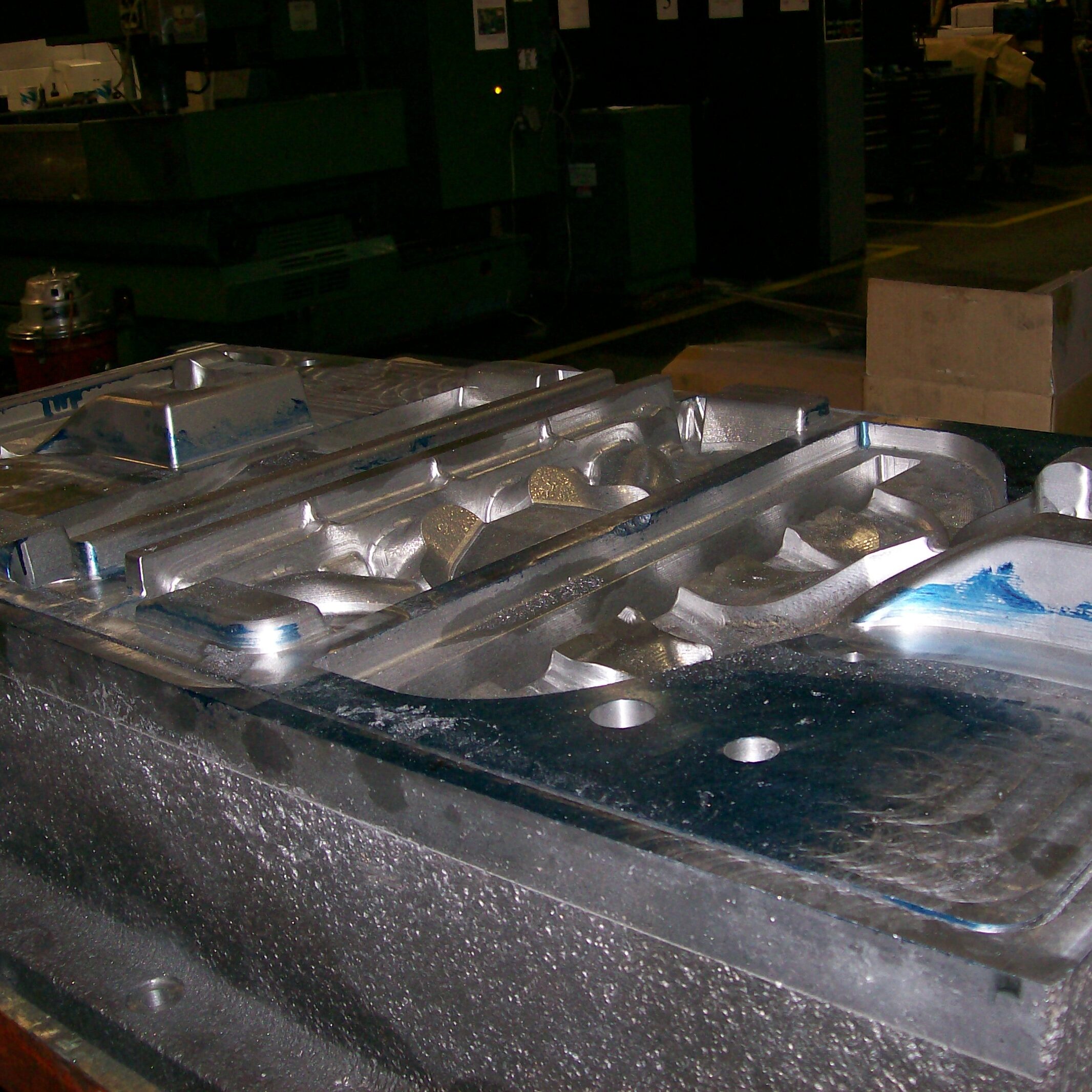

Core Boxes
And More
TECHNOLOGY AND PROCESSES
Our Equipment
From the use of the first hydraulic and electric duplicators to CNC machining, U. S. Pattern Co., Inc. is constantly improving the quality and delivery time of new and serviced pattern equipment.
Top Quality Tooling Since 1941
LATEST WORKS
Our Capabilities
History of US Pattern Co., Inc.
U.S. Pattern Co., Inc. was founded in 1941 and incorporated in the State of Michigan in 1946. Louis M. Trautman bought into the Company in 1942 where he worked and managed the Company until his death in 1948. His son, Robert J. Trautman then took over in 1955. He ran the business until his retirement [...]

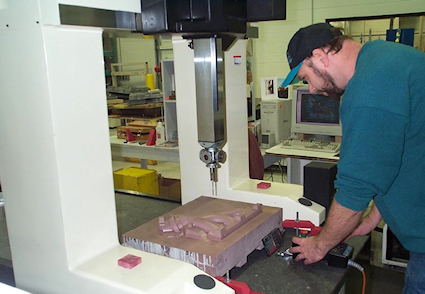

CMM Validation
We have a full service CMM department for verification and validation of your tooling. Documentation is available to the customer along with the CMM check sheets for your inspection. Inspection Equipment DEA CMM with PC-DMIS-CAD CNC Control Granite and Steel Layout Tables Inspection Gage Blocks 0 – 12. Micrometers 0 – 52. Calipers Indicators and [...]

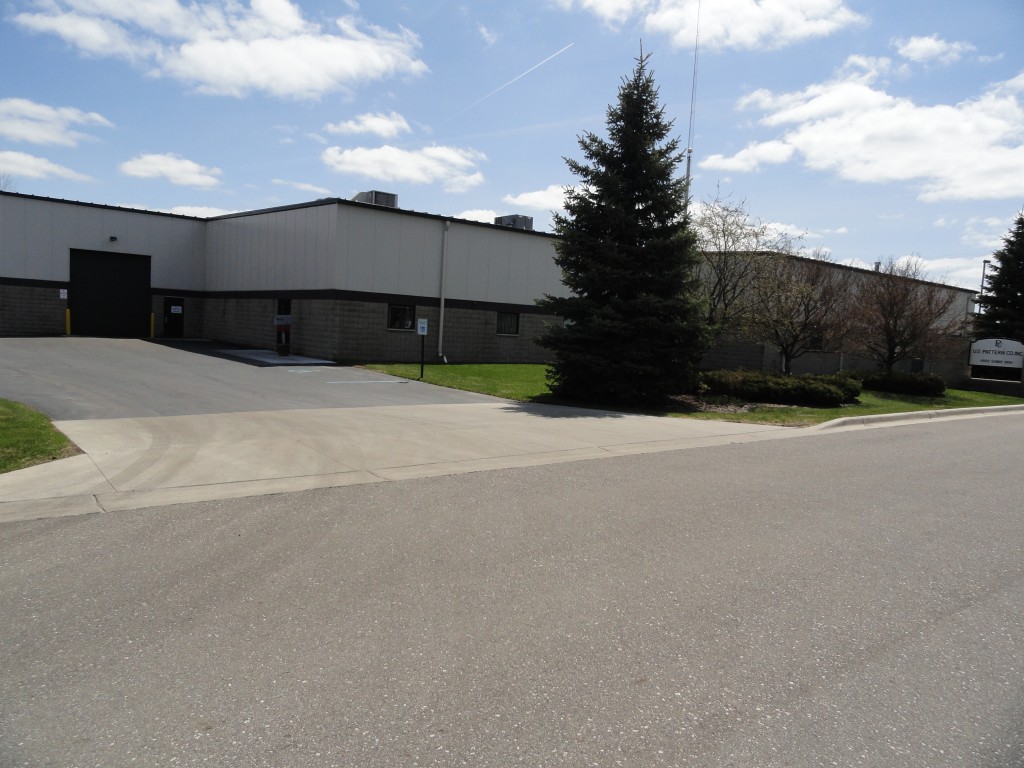

The Manufacturing Facility
Land Utilization 1.8347 Acres Buildings Completed 1997 Floor Space Utilization Building 1 Design—1,200 sf Manufacturing—15,000 sf Dock/Assembly—3,000 sf Verification/Testing (CMM)—1,200 sf Office/Administration—2,600 sf Upstairs Storage Loft—3,000 sf Floor Space Utilization Building 2 Storage Barn—4,400 sf GRAND Total all Spaces 30,400 sf
Tooling Assembly
Throughout the Company’s history, it has maintained a constant focus on its primary product, foundry tooling. The tooling supplied by U. S. Pattern Co., Inc. includes equipment such as iron, aluminum, stainless steel or plastic core boxes that form the core that is used to create the internal shape of a casting such as an [...]

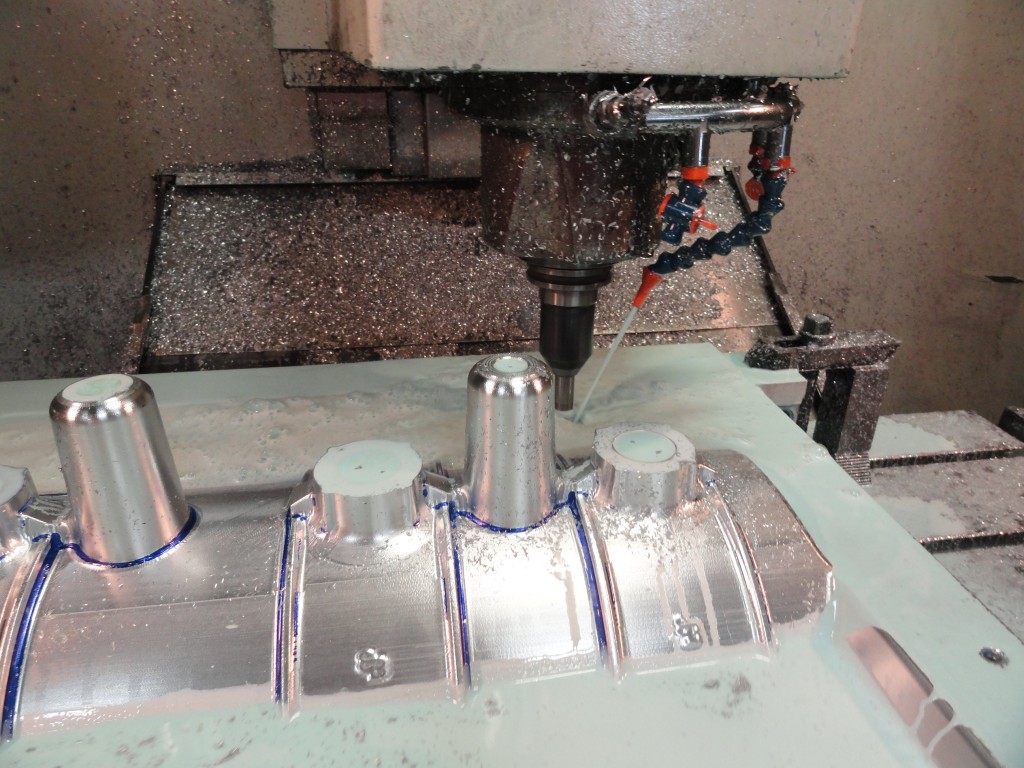

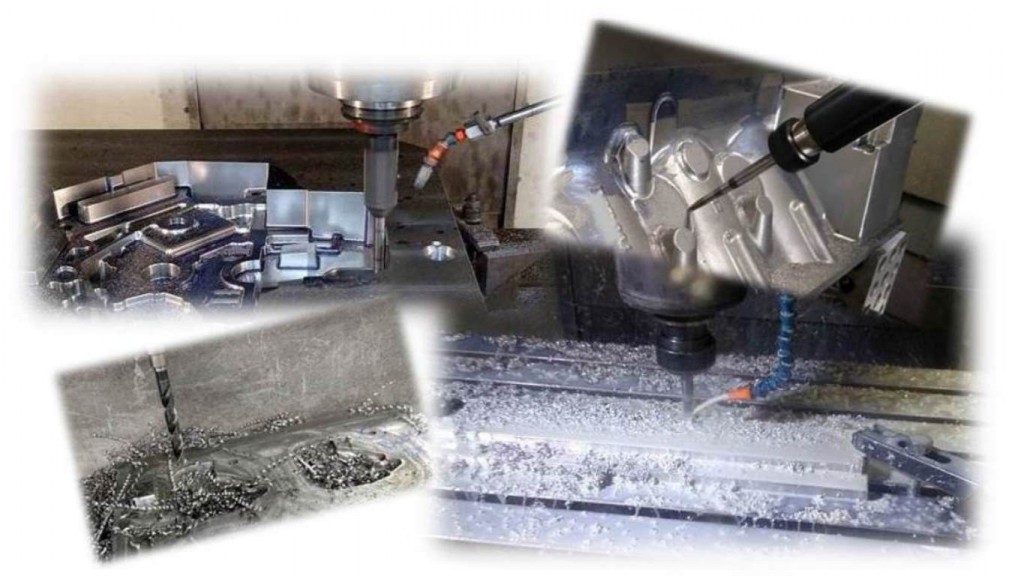

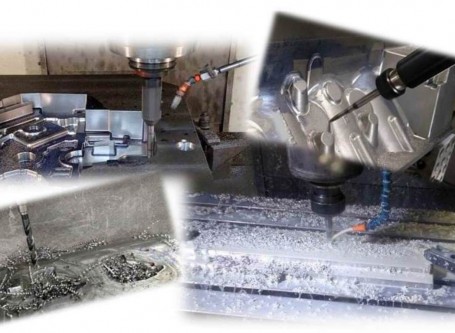

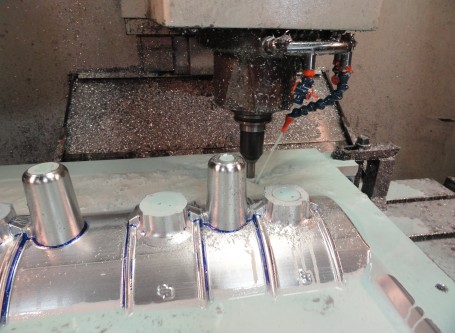

CNC Machining
Always devoted to it customers to meet their ever changing needs, U. S. Pattern Co., Inc. is committed to implementing new technology and processes in their tooling manufacturing. From the use of the first hydraulic and electric duplicators to CNC machining, U. S. Pattern Co., Inc. is constantly improving the quality and delivery time of [...]

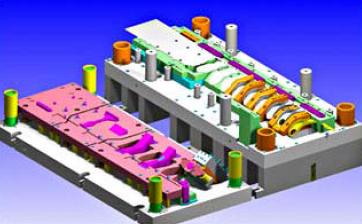

CAD Design
Our experienced staff can design and develop tooling from customer cad models, drawings, sketches and reverse-engineering. We use the most latest version of Vero International software. We also can import most CAD file formats including catia, parasolids, IGES, STEP, DXF and X-T. Our knowledge of the industry allows us to assist the customer efficiently [...]
